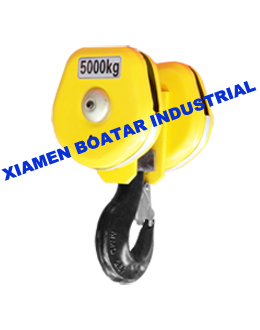

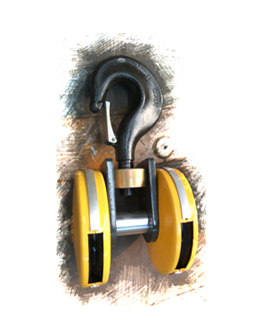

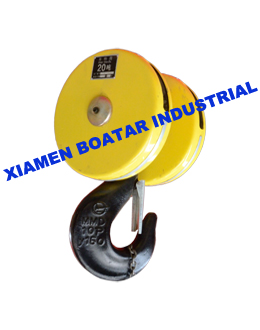

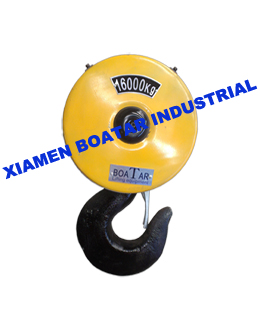

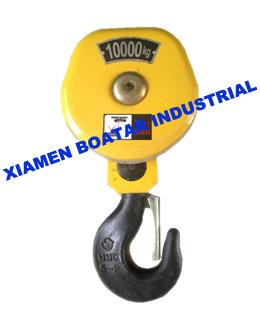

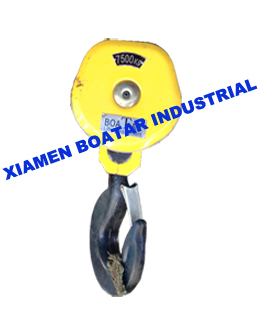

hook with double pulley capacity 2t to 32t

hook with double pulley capacity 2t to 32t

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+
INQUIRY

Widely apply in workshop, warehouse, port and etc. but strictly forbit to use in situation such as explosive, corrosive, acied, plating and etc.
Feature:
♦ made of high quality steel, forged hook, high strengh, safe, reliable and durable;
♦ compact structure, good appearance;
♦ high-thrust bearing accembly, light and flexible;
♦ high efficiency with smoonth and silent running, low noise;
♦ suit for high lifting capacity and heavy duty class.

OEM and customize accepted, welcome to contact us for more details.

Model Capacity
(Ton)
Main Dimension(mm) Weight(Kg)
H H1 L L1 D1 D2 Φ D
D2T 2 420 380 260 155 210 170 7.2 220 15
D3T 3 460 410 260 155 210 170 11 220 15
D5T 5 480 420 300 185 210 170 13 220 25
D10T 10 620 550 350 2240 260 210 15 270 50
D16T 16 740 650 350 230 330 280 17.5 3550 104
D20T 20 850 800 450 290 400 350 19.5 420 154
D32T 32 1020 980 470 325 465 400 24-26 485 260
D16T-S 16 670 580 350 230 330 280 17.5 355 94
D20T-S 20 760 680 394 265 400 350 19.5/21.5 420 145
