HC/HM series electic wire rope hoist capacity 1t to 32t
Features
HC/HM series electic wire rope hoist is design based on CD/MD series. Improved hoist details such as mounted support,drum cover and rope guide, make hoist more stable,safer and easy to maintance. Especially apply on large capacity hoist, performance better than CD/MD series.
OEM and customize accepted, welcome to contact us for more details.
| Capacity(Ton) | 16 | 20 | 32 | ||||||||||||||
| Lifting height(M) | 12/16/27/32/36/42/48 | 9/12/18/24 | 9/12/16/20/24 | ||||||||||||||
| Lifting speed(r/min) | 6 (0.6/6) | 3.3 (0.33/3.3) | 3 (0.3/3) | ||||||||||||||
| Traversing speed(r/min) | 18 | 14 | 20 | ||||||||||||||
| Steel wire rope | Dia. | 26 | 21.5 | 26 | |||||||||||||
| Specification | 6*37+1 | 6*37+1 | 6*37+1 | ||||||||||||||
| Reeving | 4/1 | 4/1 | 4/1 | ||||||||||||||
| Track | 50a-63c | 56a-63c | 63a~ | ||||||||||||||
| Min. curvalue radus(M) | 3/3.5/4/5/6/7/8 | 3/4/5.5/7.6 | 3.5/4.5/5.8/7.8/8.7 | ||||||||||||||
| Lifting motor | Model | ZDX62-6 （ZDS） | ZD152-4 （ZDS） | ZDX63-6 （ZDS） | |||||||||||||
| Power(W) | 18.5 （2.2/18.5） | 18.5 （2.2/18.5） | 18.5 （2.2/18.5） | ||||||||||||||
| Rotation speed(r/min) | 960 | 1400 | 960 | ||||||||||||||
| Traversing motor | Model | ZDY21-4 | ZDY(D)22-4 | ZDY(D)22-4 | |||||||||||||
| Power(W) | 0.8*2 | 1.5*2 | 1.5*2 | ||||||||||||||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | ||||||||||||||
| Times of connecting | 120 | ||||||||||||||||
| Working clasification | M3 & M4 | ||||||||||||||||
| Main power | 380V AC, 50HZ | ||||||||||||||||

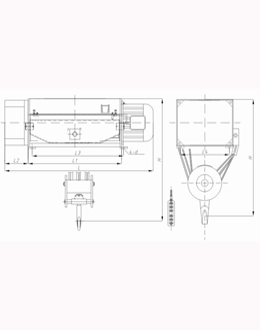

| Main dimensions(mm) | L/L1/L2/L3/L4/b/B/H/d, pls us for more details | ||||||||||||||||
| Selfweight(KG) | With trolley | 2100~2900 | 2450~3250 | 2885~3700 | |||||||||||||
| Fixed type | 1700~2500 | 1750~2550 | 2115~2880 | ||||||||||||||
