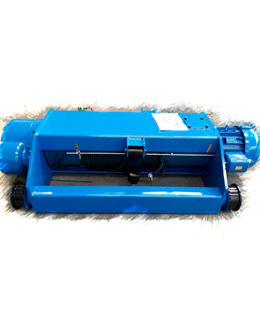

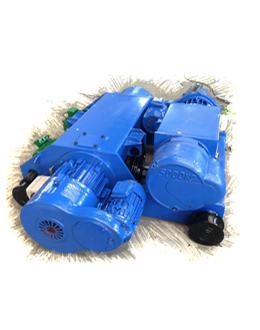

The traveling mechanism of BH light double girder hoist are installed above the double girder, capacity 2t-32t, lifting height of 4m-100m, working classification M3/M4/M5. we also design and manufacture special electric hoists according to clients’ requirements.
| Capacity | Traversing Motor（Kw） |
Main Diemsion（mm） | |||||||||
| H1 | K | S | H3 | H | L | L1 | L2 | O | M | ||
| BH-2T | 0.4 | 326 | 800/ 900 |
200 | 420 | 946 | 860 | 770 | 580 | 147 | 50 |
| BH-3T | 0.4 | 350 | 850/ 900 |
200 | 455 | 1005 | 860 | 770 | 580 | 147 | 50 |
| BH-5T | 0.75 | 420 | 940/ 1050 |
200 | 570 | 1190 | 945 | 850 | 658 | 178 | 53 |
| BH-10T | 0.75*2 | 482 | 1180 | 200 | 550 | 1232 | 1305 | 1200 | 1023 | 200 | 60 |
| BH-10/5T | 0.75*2 | 482 | 1580/ 1690 |
200 | 550 | 1232 | 1305 | 1200 | 1023 | 200 | 60 |
| BH-16T | 0.75*2 | 500 | 1215 | 200 | 580/ 650 |
1280/ 1350 |
1305 | 1200 | 1020 | 216 | 65 |
| BH-20T | 1.1*2 | 600 | 1380 | 200 | 680/ 800 |
1450/ 1600 |
1515 | 1400 | 1230 | 243 | 70 |
| BH-20/5T | 1.1*2 | 600 | 1810 | 300 | 680/ 800 |
1480/ 1600 |
1515 | 1400 | 1230 | 243 | 70 |
| BH-25T | 1.5*2 | 600 | 1380 | 300 | 900 | 1800 | 1515 | 1400 | 1230 | 243 | 70 |
| BH-25/5T | 1.5*2 | 600 | 1810 | 300 | 900 | 1800 | 1525 | 1400 | 1230 | 270 | 80 |
| BH-32T | 1.5*2 | 650 | 1600 | 300 | 980 | 1930 | 1625 | 1500 | 1340 | 270 | 80 |
| BH-32/5T | 1.5*2 | 650 | 2000 | 300 | 980 | 1930 | 1625 | 1500 | 1340 | 270 | 70 |
